Wisenet Retail Insight
Product Configuration
|
Component |
System requirement |
|
|
Insight server |
Hardware |
CPU Intel Core [email protected], RAM 16GB or more |
|
OS |
Windows7/10 64bit |
|
General
| Supported device | XND-6010, XNV-6010, XNF-8010R/RV/RVM (Firmware after January 2019) | |
| Camera data collection method | Camera data push | |
| Language | English, Korean, Russian | |
| Number of channels per system | Maximum 500 | |
| Number of Retail Insight Server per system | Maximum 1 | |
Insight Server
| System | |
| Store management | Camera group as store, Map image import, Set store group |
| User management | Multi level user group, Authority setting |
| Push interval | |
| People counting | Minimum 15 minute, Maximum 60 minute |

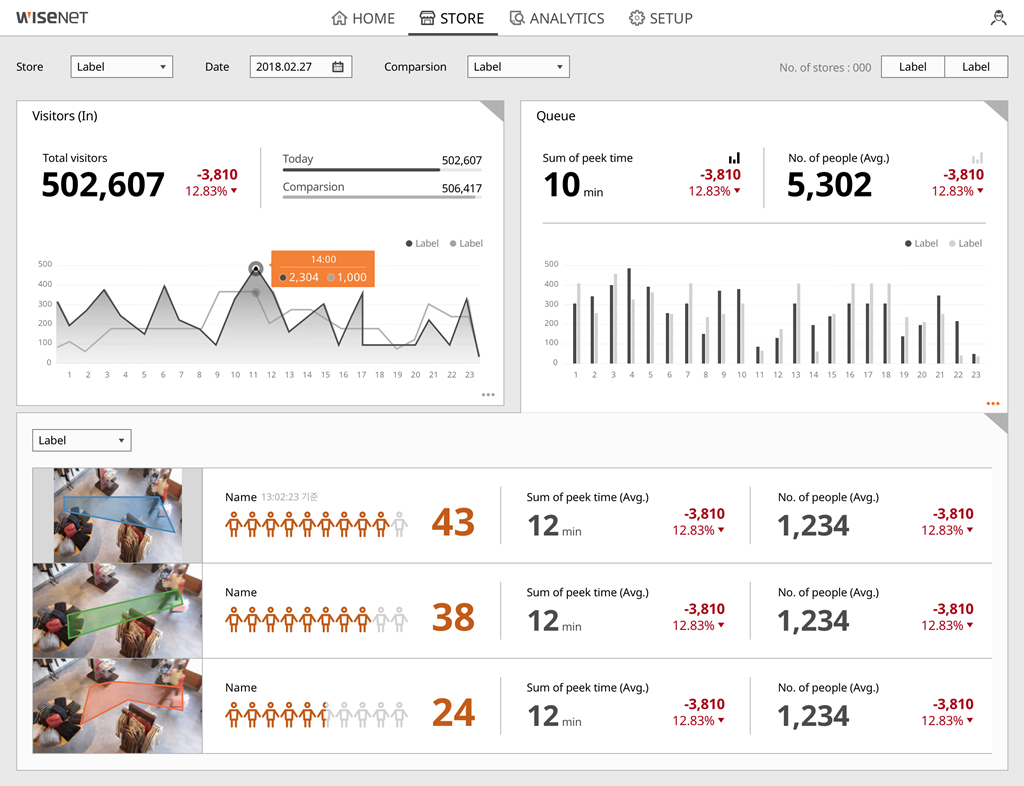

| Queue management | Minimum 15 minute, Maximum 60 minute |

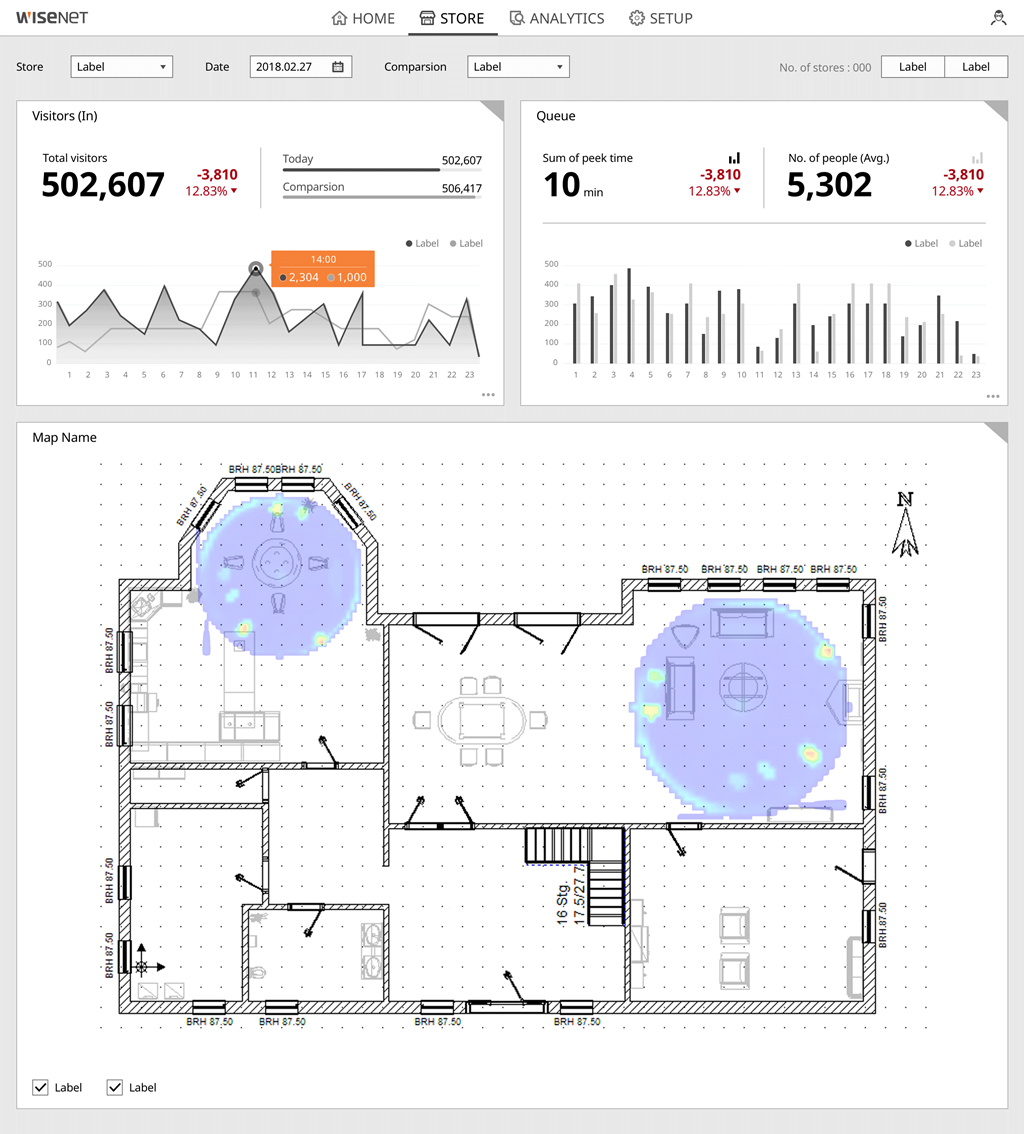

| Heatmap | Minimum 1 hour, Maximum 24 hour |
| Camera thumbnail | Twice a day , Time setting |
| Client | |
| Web browser | Crome v66.0.3359.139 and above |
| Dashboard | |

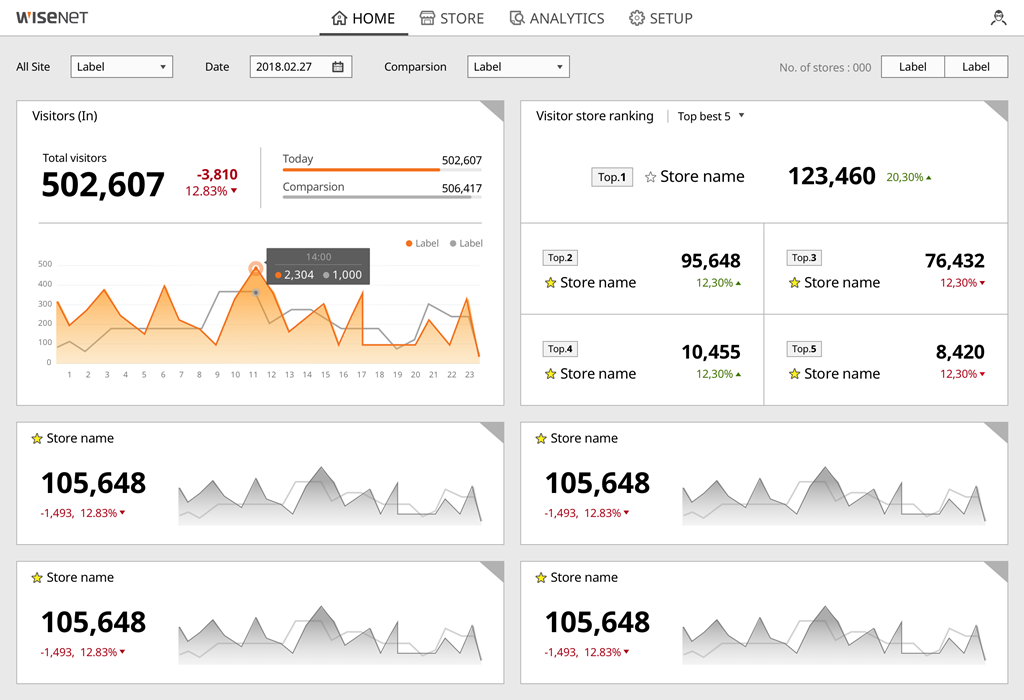

| Multi store view | For HQ and multi store manager |
| Single store view | Detail data for one store, Date comparison |
| Analytics | |
| Report type | Visitor counting, Queue counting, Heat map |
| Option | Multi store comparison in the same period (Up to 5 store or store group) |
| Export format | Excel, JPEG |
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin.
